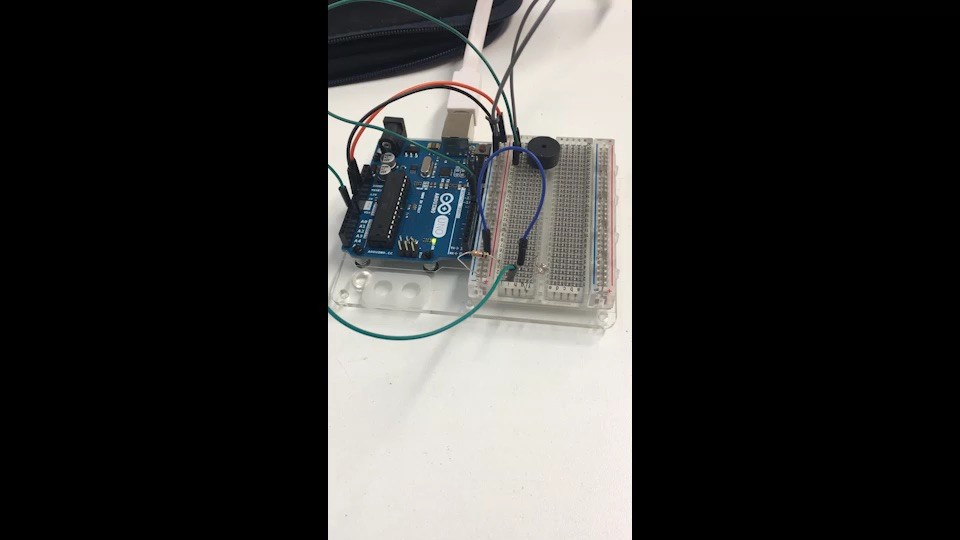

Lab assignment 06: Use a Piezo as a Theremin Use a photoresistor to calibrate a Piezo that changes the frequency.
The calibration process takes place with while loop (millis() < 5000). The key point in calibration is the high and low points are initially reversed. sensorValue <1023 (LOW)
sensorValue > 0 (HIGH) Key terms: while (millis() < 5000) {
sensorValue = analogRead(A0);
// remap sensr 0-1023 to freq 50,4000
int pitch = map (sensorValue,sensorLow,sensorHigh,500,4000);
tone(8,freq[i],30);
PROJECT_06_THEREMIN
Video Player is loading.
Current Time 0:00
/
Duration -:-
Loaded: 0%
0:00
Stream Type LIVE
Remaining Time --:-
1x
Chapters
descriptions off, selected
captions settings, opens captions settings dialog
captions off, selected
This is a modal window.
The media could not be loaded, either because the server or network failed or because the format is not supported.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.

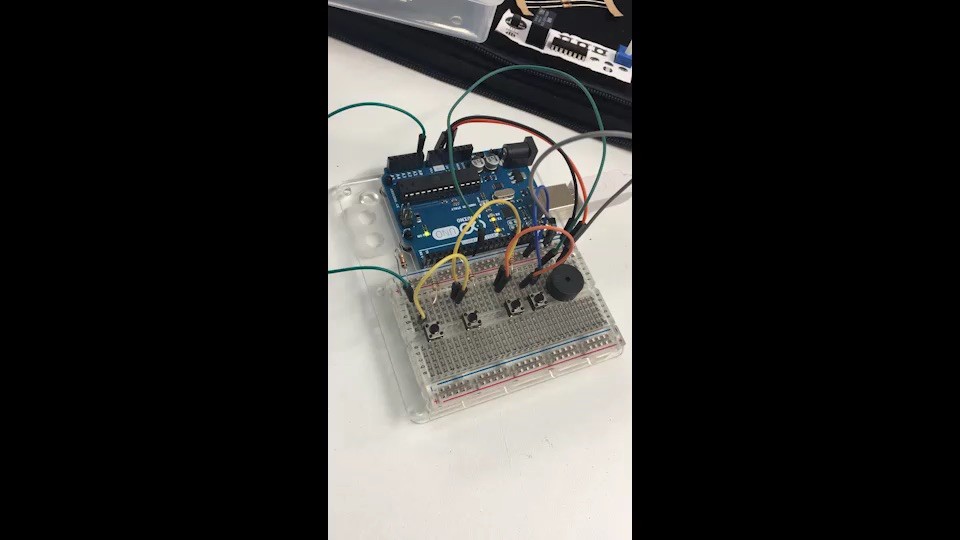

Lab assignment 07: Use a Piezo as a Keyboard Using a resistor ladder. Take reading from 5 resistors in series the voltage drops across each resistor giving a different output. The values are converted to frequencies for the piezo.
Key terms: int notes[] = {262,294,330,349};
int keyVal = analogRead(A0); (0-1023)
tone(8,notes[1]);
(keyVal >= 990 && keyVal <=1010)
PROJECT_07_PIZEOTONES
Video Player is loading.
Current Time 0:00
/
Duration -:-
Loaded: 0%
0:00
Stream Type LIVE
Remaining Time --:-
1x
Chapters
descriptions off, selected
captions settings, opens captions settings dialog
captions off, selected
This is a modal window.
The media could not be loaded, either because the server or network failed or because the format is not supported.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.

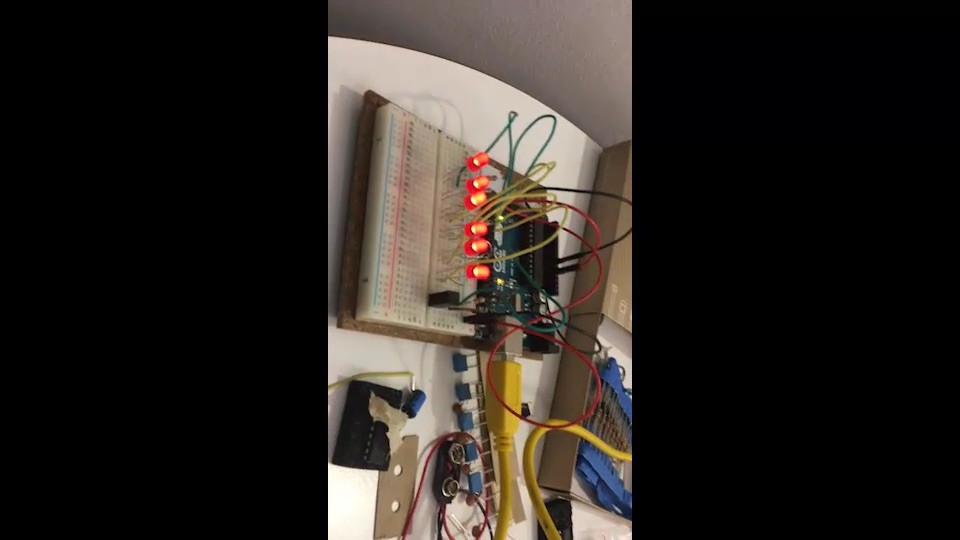

Lab assignment 08: Digital Hourglass +tilt switch Using a millis() function to read the time in milliseconds count the interval time and then set on a LED for that time period. Then use the tilt switch to reset all the LED’s.
Key terms: unsigned long previousTime = 0;
long interval = 1000;
//read switchpin 8
switchState = digitalRead(switchPin);(either 1 or 0)
prevSwitchState=switchState;
PROJECT_08_TILTSWITCH
Video Player is loading.
Current Time 0:00
/
Duration -:-
Loaded: 0%
0:00
Stream Type LIVE
Remaining Time --:-
1x
Chapters
descriptions off, selected
captions settings, opens captions settings dialog
captions off, selected
This is a modal window.
The media could not be loaded, either because the server or network failed or because the format is not supported.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.

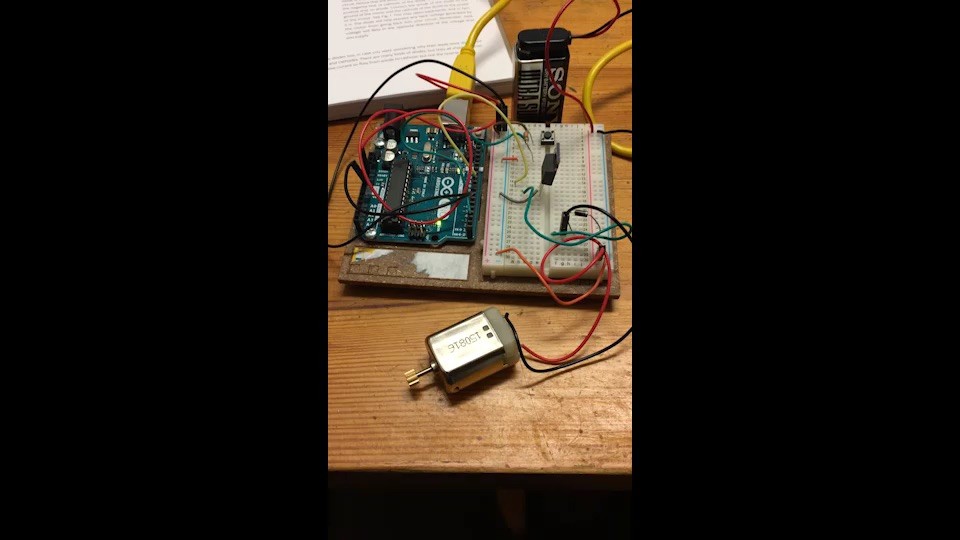

Lab assignment 09: Motor switch using a transistor gate and switch Press a button to send a signal to arduino that resends a high to the transistor gate. That activates the motor. Use a diode in parallel with the motor to counteract reverse induced voltage.
Key terms: pinMode(motorPin, OUTPUT);
switchState = digitalRead(switchPin);
if (switchState == HIGH) {
digitalWrite(motorPin,HIGH);
} else {
digitalWrite(motorPin,LOW);
}
PROJECT_09_MOTORWITHBUTTON_1
Video Player is loading.
Current Time 0:00
/
Duration -:-
Loaded: 0%
0:00
Stream Type LIVE
Remaining Time --:-
1x
Chapters
descriptions off, selected
captions settings, opens captions settings dialog
captions off, selected
This is a modal window.
The media could not be loaded, either because the server or network failed or because the format is not supported.
Beginning of dialog window. Escape will cancel and close the window.
